Description

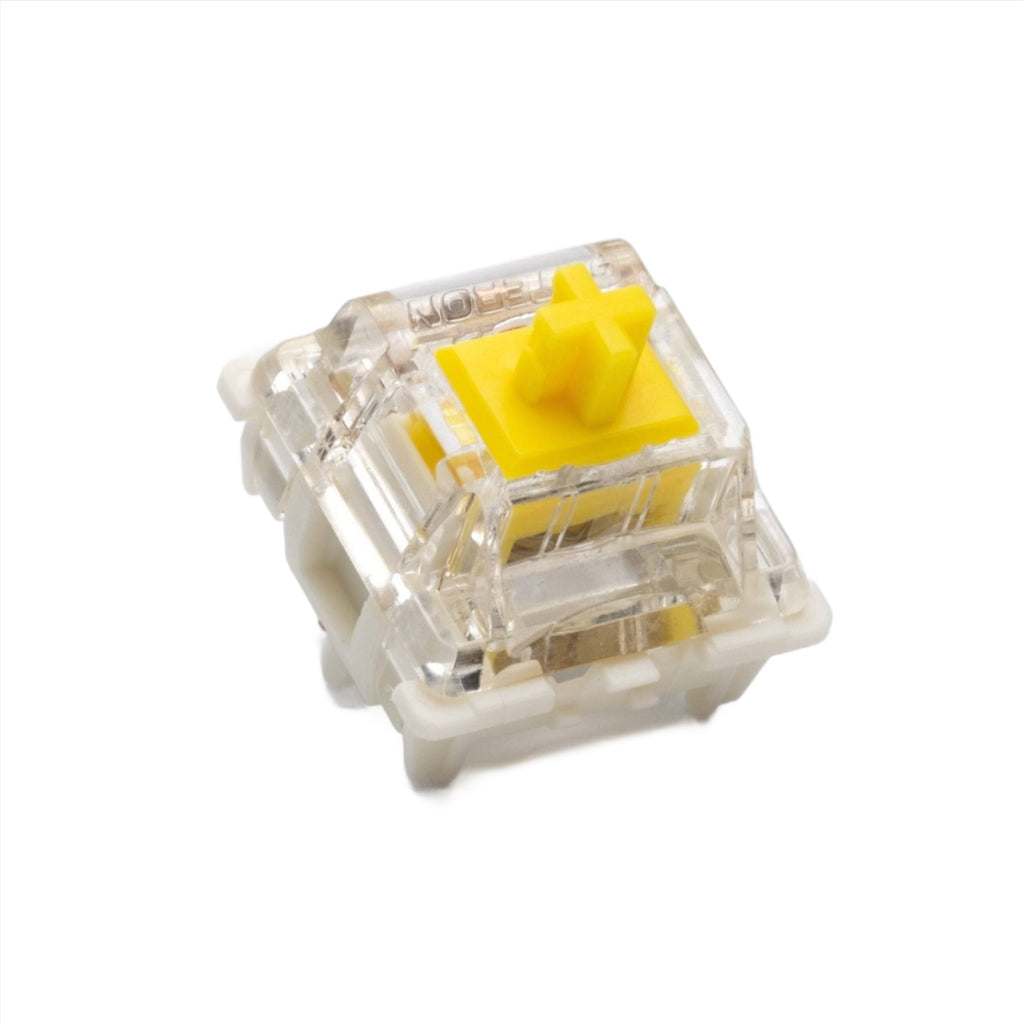

The Gateron G Pro 2.0 Yellow (KS-9) switches use an upgraded mould for tighter housing tolerances and optimal RGB LED shine through.
These switches are very smooth in stock form thanks to a light factory lube, and punch well above their price point. We really think that the G Pro 2.0 range of Gateron switches are a game changer for the budget switch space.
1 Pack = 10 Pieces
Specification
- Switch Type: Linear
- Top Housing: Polycarbonate
- Stem: POM
- Pre-Travel: 2.0mm
- Total Travel: 4.0mm
- Spring Actuation: 50g
- Spring Bottom Out: 67g
- Mount: PCB Mount, 5-pin
- Factory Lubed: Yes
All orders will be processed within 1-2 business days. Please note that the below shipping timelines apply from order fulfilment
UK Customers |
|
|
Royal Mail Tracked 24 or 48 (Estimated 1-3 Business Days) |
Starting from as little as £2.35 |
|
Royal Mail Special Delivery Next Day Guaranteed |
Starting from £6.35 |
| DHL Domestic Express (Next Business day) | From £7.22 (Live rates calculated at checkout) |
International Customers |
|
|
Royal Mail International Tracked Estimated 3-15 Business days delivery |
Prices start from £7.86 and will increase based on shipping weight and destination |
| DHL Worldwide Express | Carrier calculated shipping rates offered at checkout, based on weight and desitnation |
Tracking your order
UK Customers
Royal Mail Tracked 24 and Tracked 48 are premium postal services offered by Royal Mail. These services provide reliable and efficient delivery of your packages within the UK, with tracking available at every stage of the journey. Please use the tracking number you receive once your order have shipped to track you parcel.
Royal Mail Special Delivery Guaranteed and DHL Domestic Express are fully tracked services and you will be able to track your parcel throughout its journey using the provided tracking number.
International Customers
All orders are shipped via Royal Mail International Tracked or DHL Express. Full tracking is available for both of these services.
About 60 Custom Mechanical Keyboard-Class60
0. Features：
In Short - The Class60 is a Leaf-spring/Top dual mounting 60% Keyboard, we kept the beloved Buzzer & Solenoid feature from the previous board the Class80 and on top also added the support for QMK&VIAL compatible capacitive PCB (we use the “T” word) and an optional wrist rest to enlarge the chin of the keyboard.
1. Aesthetics & Design
1.1. Size: 31.47cm length and 13.62cm width and the front is sloped with a height of 18.7-21.1mm
1.2.Top Case options: WK/WKL/HHKB top case available
1.3. Color Options: E-Retro white, Ano Red, Ano Silver, Ano Black, Ano Blue, Ano Grey
1.4.Badge: The front Stainless Steel badge with print a mountain-like “M” with the Class60's name (may vary slightly in production)
We will also provide empty badges for those who want to customize it and put something special on it.
1.5. Weight options: currently Mirror Black PVD SS or Sandblasted Black PVD SS - tell us if you want see more options.
2. Internals:
As mentioned briefly before, Class60 supports leaf-spring mount and top mount. We kept the Buzzer/solenoid and added capacitive PCB support. And of course, how can we leave out the plateless build, which is already tradition in our boards.
2.1 PCB: 1.6mm PCB with no flex cut, 5 different PCB are available:
· Wired Soldered 60%
· Wired Hotswap 60%
· Bluetooth Hotswap 60%（3100mAh）
· Wired Hotswap left-shifted 64% (60% with arrow keys)
· Wired Capacitive PCB (including everything except keycaps in the capacitive version base kit; the PCB supports dsk, niz, topre standards, The default slider are MX compatible).
2.2 Layout:
2.3 Plate options:
Left shifted 64% plate: PC only
Capacitive PCB plate: Alu only (2 options: Split BS or 2u BS)
(Please notice that the Capacitive PCB plate only compatible with the layout on the chosen plate, and the two plate options we will provide support split BS/2U BS and step Caps. If you would like to have other layouts like ISO, you need to make your own plate, of course we will provide plate files)
2.4 Wrist rest (optional): The wrist rest is made of Polycarbonate + Alu, is magnet-guided and attaches strongly to the magnets on the slope of the chin, 6 different colors will be available, matching the colors of the top case.
