0. Features：
In Short - The Class60 is a Leaf-spring/Top dual mounting 60% Keyboard, we kept the beloved Buzzer & Solenoid feature from the previous board the Class80 and on top also added the support for QMK&VIAL compatible capacitive PCB (we use the “T” word) and an optional wrist rest to enlarge the chin of the keyboard.
1. Aesthetics & Design
1.1. Size: 31.47cm length and 13.62cm width and the front is sloped with a height of 18.7-21.1mm
1.2.Top Case options: WK/WKL/HHKB top case available
1.3. Color Options: E-Retro white, Ano Red, Ano Silver, Ano Black, Ano Blue, Ano Grey
1.4.Badge: The front Stainless Steel badge with print a mountain-like “M” with the Class60's name (may vary slightly in production)
We will also provide empty badges for those who want to customize it and put something special on it.
1.5. Weight options: currently Mirror Black PVD SS or Sandblasted Black PVD SS - tell us if you want see more options.
2. Internals:
As mentioned briefly before, Class60 supports leaf-spring mount and top mount. We kept the Buzzer/solenoid and added capacitive PCB support. And of course, how can we leave out the plateless build, which is already tradition in our boards.
2.1 PCB: 1.6mm PCB with no flex cut, 5 different PCB are available:
· Wired Soldered 60%
· Wired Hotswap 60%
· Bluetooth Hotswap 60%（3100mAh）
· Wired Hotswap left-shifted 64% (60% with arrow keys)
· Wired Capacitive PCB (including everything except keycaps in the capacitive version base kit; the PCB supports dsk, niz, topre standards, The default slider are MX compatible).
2.2 Layout:
2.3 Plate options:
Left shifted 64% plate: PC only
Capacitive PCB plate: Alu only (2 options: Split BS or 2u BS)
(Please notice that the Capacitive PCB plate only compatible with the layout on the chosen plate, and the two plate options we will provide support split BS/2U BS and step Caps. If you would like to have other layouts like ISO, you need to make your own plate, of course we will provide plate files)
2.4 Wrist rest (optional): The wrist rest is made of Polycarbonate + Alu, is magnet-guided and attaches strongly to the magnets on the slope of the chin, 6 different colors will be available, matching the colors of the top case.
PBTFans Dolch
$16.21 $22.69

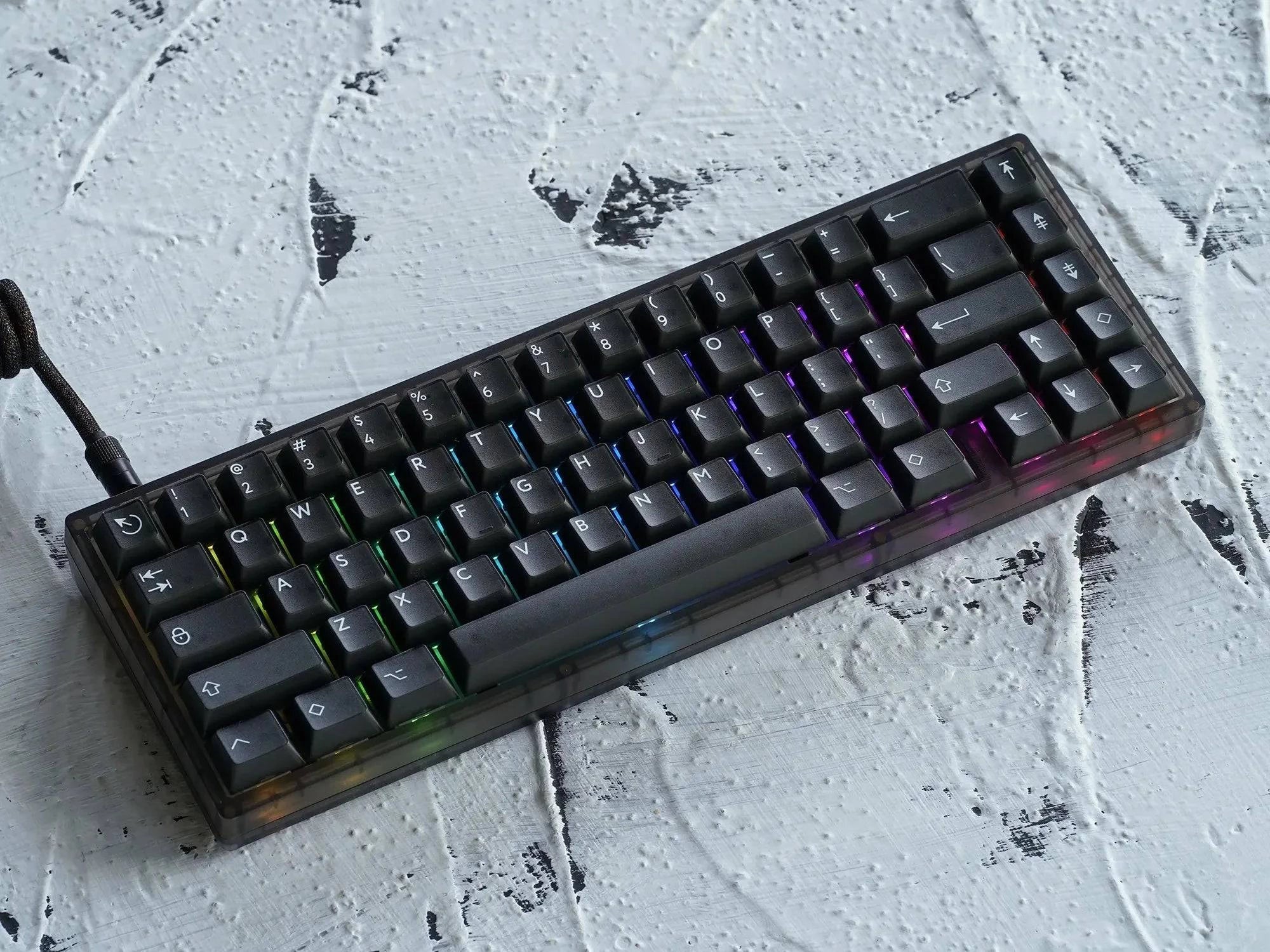

PBTFans™ Neon Keycaps
$19.45 $97.24
PBTFans Rim
$12.95 $20.53
PBTFans Spark Light
$19.45 $48.63
PBTFans Purpurite
$17.28 $19.45

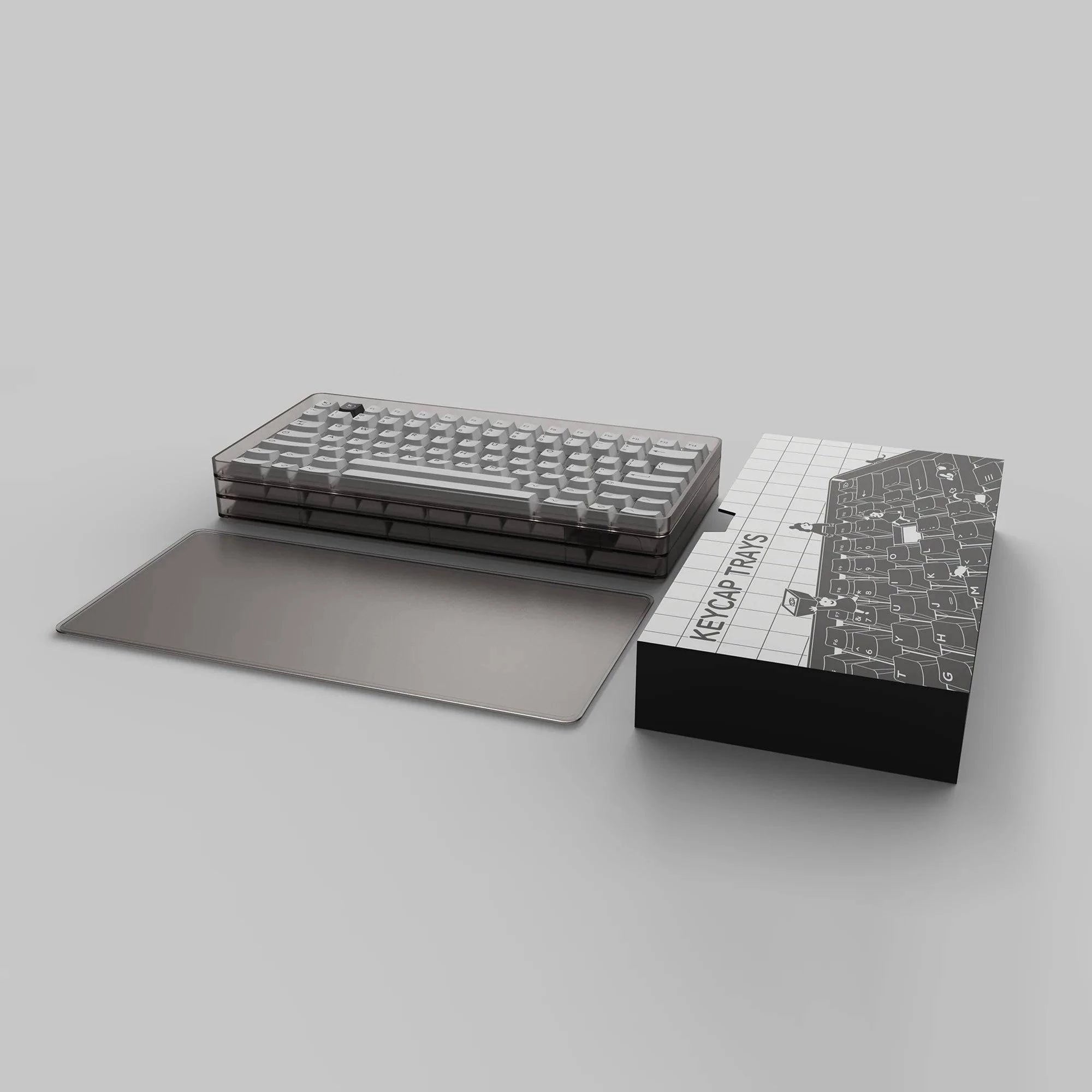

PBTFans™ Keycap Trays
